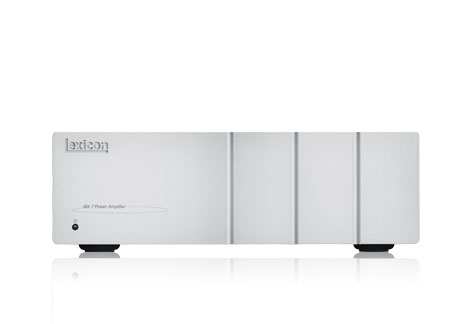

GX-7 Amplifier

Equipped with an over-sized toroidal transformer and individual power supplies for each of its seven channels, the GX-7 combines considerable output with quiet, low-distortion operation. Because each channel has its own power supply, the GX-7 has significantly improved channel separation. Intended for systems where the additional output of the RX-7 or the ZX-7 is not necessary, the GX-7 – with 125 watts per channel into 8 ohms – has more than enough power to drive most multi-channel speaker systems. When driving a 4 ohm load, the output of the GX-7 increases to an impressive 188 watts per channel.

In order to facilitate easy system integration, the GX-7 includes a 12-volt trigger input on the rear panel so that it can be powered up remotely buy a separate device with an output trigger, such as a Lexicon Digital Controller. A rack mount is also available.

With its clean, quiet power, the GX-7 serves as an exceptional addition to any multi-channel home entertainment system.

• 125 watts per channel (8Ω)
• 188 watts per channel (4Ω)
• Oversized toroidal transformer
• Individual power supplies for each channel
• Individual protection circuitry for each channel
• Thermal protection from overheating
• Loudspeaker protection from DC and frequencies below 10Hz
• Protection against short-circuits, device failures, miswiring and internal faults
• Stable with mismatched, reactive or unusual loads
• Heat-sinks for each channel for silent convection cooling
• RCA input connectors
• Trigger input for power control from an external device
• High power-supply voltage(160V) for extra headroom at the outputs
• Heavy-duty gold plated output connectors
• Rack mount available
• Height: 3U
