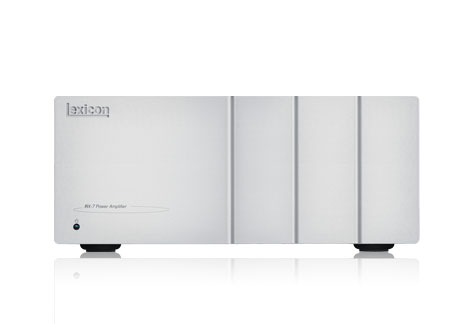

RX-7 Amplifier

The RX-7 is ideally suited to drive high-quality home theater and multi-channel music systems. Based on the design of the larger ZX-7, the RX-7 has a fully balanced topology. Due to its low distortion and quiet operation, it is capable of exceptional refinement of fine detail and resolution of low-level sonic nuances. Plus with a rated output of 200 watts into seven channels, the RX-7 has more than enough power to drive almost any system to reference levels with ease.

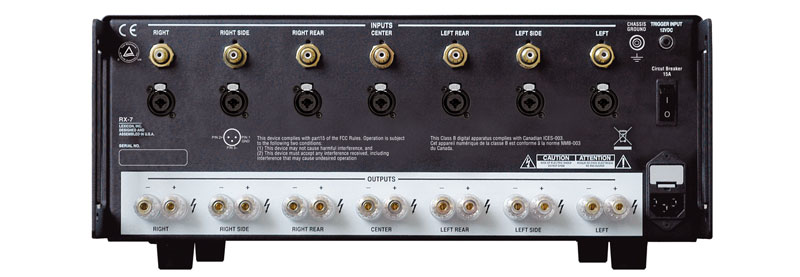

Equipped with gold-plated speaker output connectors, the rear panel includes selectable balanced XLR and RCA input connectors. A trigger input connector allows the RX-7 amplifiers to be controlled by a preamp/processor such as the Lexicon MC-12HD or MC-8. The RX-7 employs the same advanced optically-coupled protection circuitry found in the ZX-7, keeping it and associated equipment safe during adverse operating conditions.

Designed for the enthusiast, The RX-7 is the perfect complement to our award-winning Digital Controllers and Disc Transports, providing both power and refinement for today’s most advanced listening systems.

• 200 watts per channel (8Ω)
• 300 watts per channel (4Ω)
• Compatible with 2 ohm loudspeaker impedances
• Full balanced topology
• Completely symmetrical circuit design
• Dual oversized toroidal transformers
• Advanced optically coupled protection for each channel
• Thermal protection from overheating
• Loudspeaker protection from DC and frequencies below 10Hz
• Protection against short-circuits, device failures, miswiring and internal faults
• Stable with mismatched, reactive or unusual loads
• Large heat-sinks for silent convection cooling
• Balanced & single-ended input connectors
• Trigger input for power control from an external device
• Four hand-graded outputs per channel
• High power-supply voltage for extra headroom at the outputs
• Heavy-duty gold-plated output connectors
• Rack mount available
• Height: 4U
